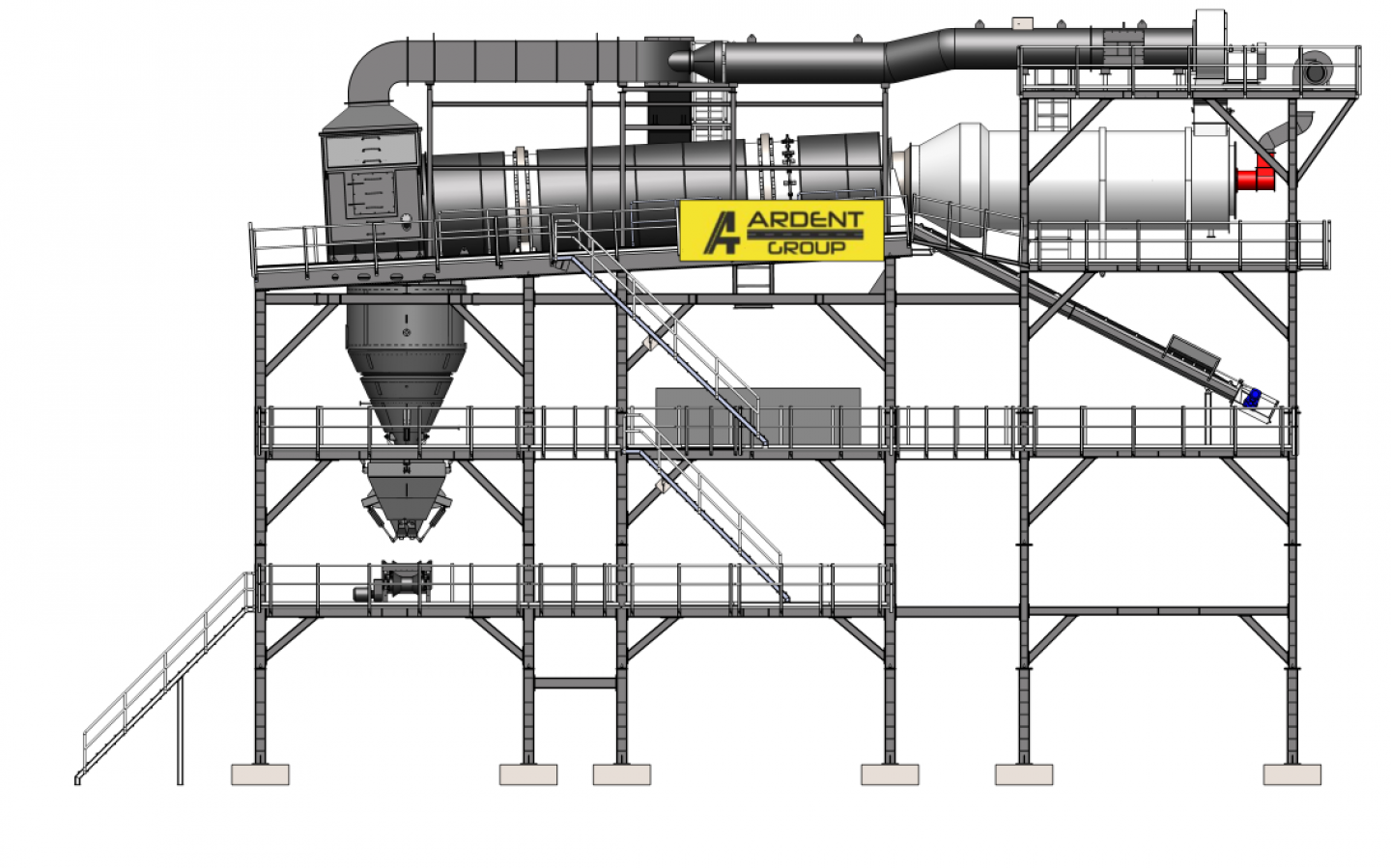

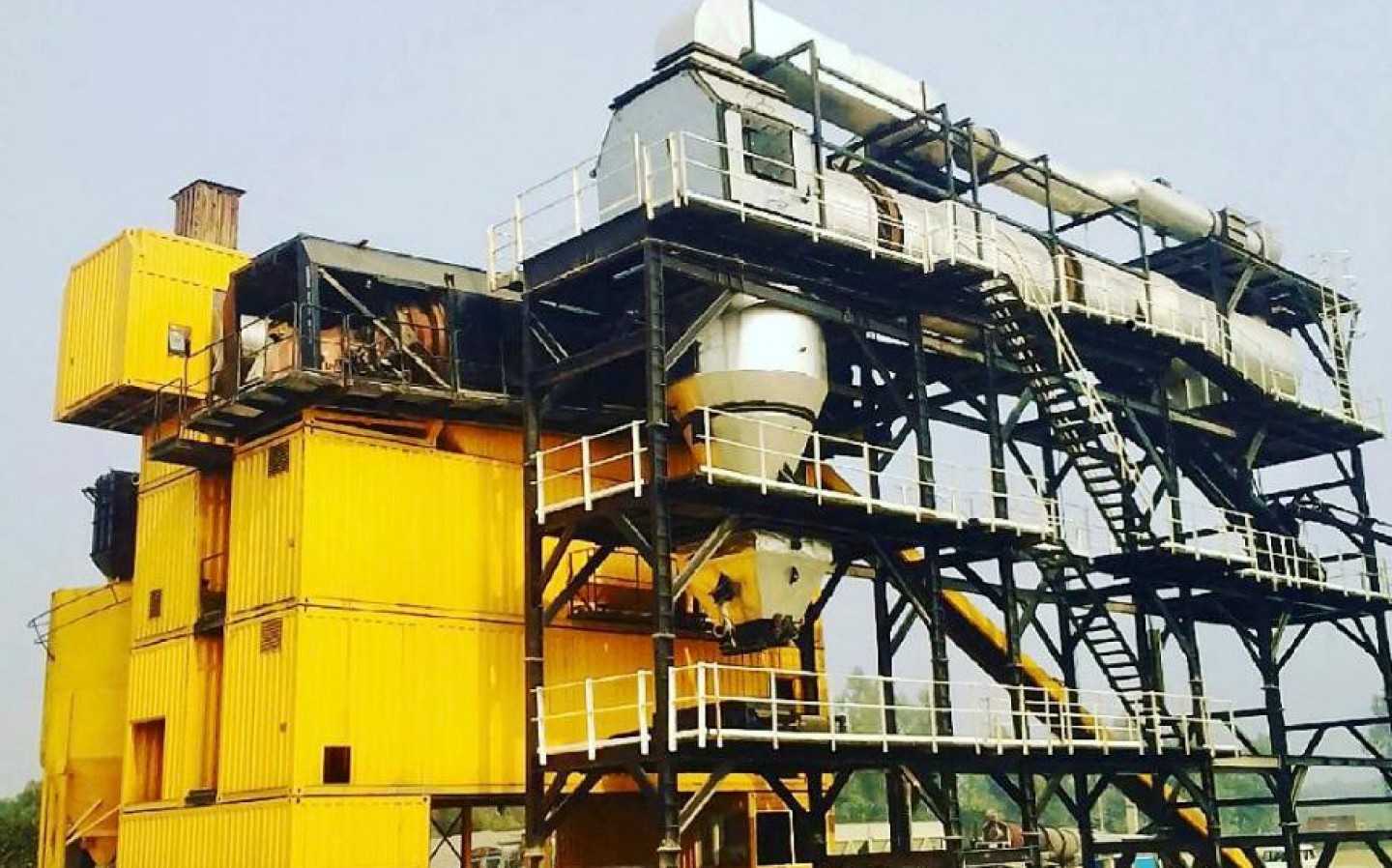

COMPONENTS OF THE PLANT

1. 2 units recycled material hoppers of 9 m3 with continuous variable speed motors
2. Vibrators and gratings over hopper
3. Collecting Belt
4. Throw belt
5. Recycling drum
6. Fuel oil Burner
7. Inbuilt Hot Gas Generator
8. Circulating fan, ducting, damper
9. Buffer silo
10. Weigher, Feeder belt, mixer inlet chute
11. Dust blower system
12. Support structure
13. Oil spray system on feed belt to mixer
14. Electrical equipment and connection with plant software

• The proper control of the temperature and recirculation of hot air minimizes the production of harmful fumes from the heating of the asphalt, thus giving a cleaner exhaust
• Full automatic control by the computer on the airflow through the control of the dampers and the temperature monitoring by the thermometers at various positions brings the RAP to the ideal temperature at reduced oxidation for mixing with the virgin material
• The addition of the Heated RAP is batch by batch up to 70% RAP addition to the virgin aggregates & thereby providing a constant homogenous mix
• The burner uses high pressure to atomize the fuel out of the nozzle. The regulator plate regulates the fuel feed valve ensuring a fully combusted flame to develop in the burner head thus minimizing fuel wastage significantly
• Option to add a granulator crusher for use with excavated roads
• Option to add a RAP sieving system for gradation control

HOT RECYCLING MODELS:

HRC 80           80 TONS PER HOUR

HRC 100         100 TONS PER HOUR

HRC 140         140 TONS PER HOUR
